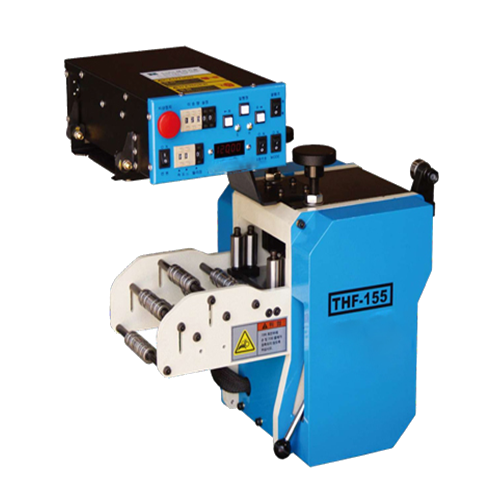

Speed NC Roll Feeder
SPESIFICATION
| Model | THF -155 | THF-205 | THF-255 |
| Material Wiidth (mm) | MAX 100 | MAX 150 | MAX 200 |
| Material Thickness (mm) | MAX 2 | ||
| Max SPM (speed) | 600 | 480 | |
| Feeding Length (mm) | MAX 999,99 | ||
| Body Weight (kg) | 40 | 45 | 50 |
| Releasing Method | Cam (Mechanical) | ||
| Material Feeding | 100/1 | 150/1 | 200/1 |
| Width/Thickness (W/mm) | 60/2 | 100/1,6 | |
| Maximun Material Width | 100 mm | ||
| Material Thickness | 1,0 mm | ||
| Maximum Transfer Length | 999,99 mm | ||
| Body Weight (kg) | 20 kg | ||
| Material Pressing Method | Spring Pressurization | ||
| 90 kgf/m3 | |||
| Releassing Method Release | Air Cylinder (Special Type) | ||
| Operating Time | 0,02 sec | ||
| Degree of Repeated Feeding | ±0,05mm | ||
| No Release When Transfer Length is 50mm | |||
| Material Transfer Width/Thickness | 100 * 0,2 | ||
| Width (mm) * Thickness (mm) | |||
| Power Supply | AC 220V 3⌀ 50/60Hz | ||
| Model | TSF~100 | |
| Transferangle | 180° | 210° |
| Press Rotation | Standard | |
| SPM | mm | |
| 300 | 12 | 14 |
| 260 | 17 | 24 |
| 220 | 24 | 36 |
| 200 | 31 | 45 |
| 180 | 40 | 56 |
| 160 | 52 | 73 |
| 140 | 70 | 97 |
| 120 | 97 | 136 |
| 100 | 144 | 200 |
| 80 | 231 | 318 |
| 60 | 408 | 528 |
