Press Automation



NC Leveller Feeder

◎ Space utilization
All-in-one UN-COILER, LEVELLER, FEEDER increase space utilization and work efficiency
◎ Accurate transfer, high torque, high inertia
Precise transfer realized by AC SERVO MOTOR and dedicated controller
◎ Diversity
Various models are available depending on the thickness and width of the coil. (0.3 ~ 10mm in thickness)
◎ High rigidity structure
Integral block structure with LINK-type releasing structure provides quiet releasing and extended  machine life
◎ Improved workability
Worker-centered machine structure and control system improve productivity and safety of workers  by improving the working environment and minimizing work setting time

Un-coiler leveller

  • Produced in consideration of solid mechanical structure and  convenient workability
  • Integration of uncoiler and leveller minimizes  installation space
  • Various optional features improve the  convenience of work

NC Roll Feeder(TSF-100)

  • Machine body and control integrated type
  • Digital switch to improve setting and  operability
  • Feed speed can be set arbitrarily by  digital switch (100 steps)
  • Release operating time can be set
  • Inching (Left / Right) feed amount display

NC Roll Feeder(THF-155)

  • Mechanism integrated structure
  • High precision: 3/100
  • Dedicated CPU: Improved control  speed
  • Stability: Double dustproof structure,  perfect noise countermeasure
  • Easy adjustment of roll gap and roll pressure
  • Self-diagnostic protective function  (Error code display)
  • Releasing cam method
  • Forward / Reverse drive switchable

Fine  Leveller (Open Type)

  • Phosphor bronze bushings on the work roll rotating part  allow for wear-free and semi-permanent use
  • Interlocking with the press enables emergency stop in  the event of a problem.
  • The manual grease injection method eliminates strain on  the drive. (Supply adjustable)
  • Precision leveling ability to obtain precision leveling
  • Simple and easy to adjust leveling by adopting  front / rear dial gauge
  • Stepless speed change makes it easy to adjust the speed  and enables usage even in small spaces
  • The inverter drive method eliminates strain on the drive
  • Easy to clean rolls with head open type
  • (Excellent performance when using non-ferrous materials)

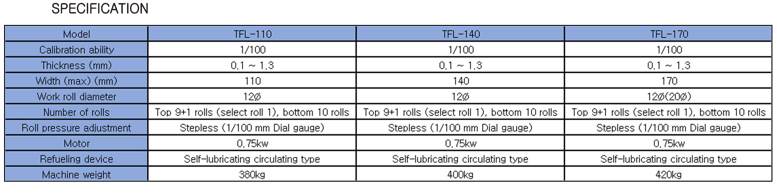

Fine Leveller

  • Phosphor bronze bushings on the work roll rotating  part allow for wear-free and semi-permanent use
  • Interlocking with the press enables emergency stop  in the event of a problem
  • The automatic oil circulation method eliminates strain  on the drive. (Supply adjustable)
  • Precision leveling ability to obtain precision leveling
  • Simple and easy to adjust leveling by adopting  front / rear dial gauge
  • Stepless speed change makes it easy to adjust the speed  and enables usage even in small spaces
  • The inverter drive method eliminates strain on the drive
  • Operation status can be easily identified by the operation  status indicator.(LED Bar)

Precision  Leveller

  • It is a high-performance machine that is also used for sheet  and single leveller as a machine to obtain precise flatness of  materials during PRESS processing
  • Easy to set up with digital indicator (3 point) (See photo)
  • In order to realize high precision, it was manufactured in  consideration of various conditions such as diameter of  work roll, gap of roll, press precision, continuous driving  method, roll material, heat treatment
  • Stepless speed change is possible through inverter control  and speed is compatible with PRESS, making it possible to  achieve stable leveling effect
  • Easy to clean and repair the roll by designing the openable  structure of the head part
  • Drive Source: INVERTER MOTOR
  • Head open type

Unit Leveller

  • Model with precision leveling ability
  • Easy leveling control does not require skills. (Digital indicator)
  • The speed can be adjusted freely with a continuously variable  transmission. (option)
  • The CONTROL part is equipped with various functions to make  it easy to use and comes with a function to prevent motor  damage
  • All products are standardized, so you can choose various  models depending on the thickness of materials.

Un-coiler



  • Excellent durability
  • Robust mechanical structure
  • Smooth operation
  • Easy operability

Option

  • Hydraulic expansion & reduction
  • Inverter control
  • Coil pusher
  • Double uncoiler
  • Coil car

Scrap Winder

  • Maintains constant tension when  processing ultra thin plate materials such  as mobile phone parts, helping smooth  transfer

  • The inverter installation allows you to work  easily because it enables smooth acceleration  and deceleration and does not apply excessive  tension

  • Easy operation allows anyone to work easily

  • Available for multiple products due to easy  width adjustment of bobbin k with press

Scrap Cutter

  • The vertical type reducer enables the reciprocating drive
  • Sole operation is possible and the installation space can be

  • Convenient for use because it is easy to adjust the angle  of scrap entry part

  • Easy to move because the moving wheels are attached

  • Scrap cutting increases the operator’s convenience

Oil Roller Device

  • Oil can be supplied to both front and back sides of the material, preventing mold breakage and extending life
  • Evenly lubricating the material without stains to minimize oil usage
  • Connected with each hose, which makes it easy to control the flow rate
  • easy to replace after roller wear
  • Easy to adjust the height according to the pass line
  • The oil pan is attached to save oil
  • Application of high density felt makes long-term use possible
