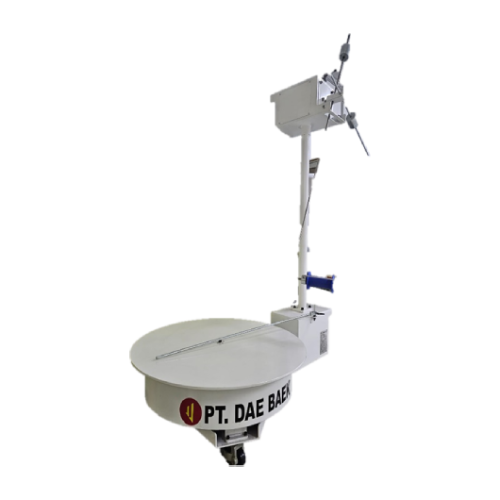

Pallet Uncoiler

SPESIFICATION

Inductive Electronic
ZT-1000/1200 ZT-1010 ZT-1210 ZT-1515 ZT-1520
Model

Volume

(Length, Width, Height)

 1,1*1,0*1,6m 1,1*1,0*1,75m 1,3*1,2*1,75m 1,6*1,5*1,75m 1,6*1,5*1,75m
Weight 250 300 350 500 550
Loading Height 450 450 450 450 450
Voltage 380V 220V/380V 220V/380V 220V/380V 220V/380V
Disc Diameter 1000/1200 1000 1200 1500 1500
Weight-bearing 300kg 500kg/1t 1t 1,5t 2t
Attention

1. The outer diameter of the rolled material cannot exceed the disc, the maximum accumulation height is 450MM, the maximum material thickness is 1,0MM, the maximum material width is 130MM, and the maximum feeding speed is 30M/MIN.

2. The voltage of iduction type uses three-phase 380V, while the Electronic type and the Frequency-controlled Speed type uses three-phase 220v.
