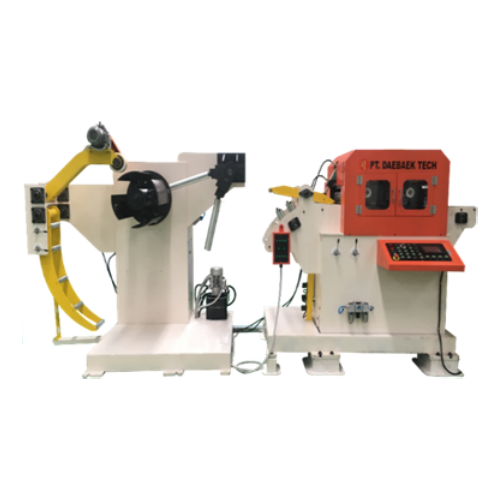

Straightener Feeder

SPESIFICATION

Model TNCL-3032 TNCL-4032 TNCL-5032 TNCL-6032 TNCL-7032
Material Wiidth (mm) 50 ~ 32 50 ~ 400 50 ~ 500 50 ~ 600 50 ~ 700
Thickness (mm) 0,5 ~ 3,2
Material Transfer Width/Thickness 3,2 * 80
1,5 * 300		 3,2 * 80
1,5 * 400		 3,2 * 120
1,5 * 500		 3,2 * 150
1,5 * 600		 3,2 * 150
1,5 * 700
Coil Outer Diameter (mm) ⌀1200
Coil Inner Diameter (mm) ⌀508 or less
Weight (kg) 2000 3000 3000 5000 5000
Line Speed (M/min) 34
Feeding Accuracy ±5/100
Work Roll Number Upper 4/Low 4
Servo Motor Capacity (kw) AC 3,5 ~ 5,0
Power Supply AC 220V 3⌀ 50/60Hz



M* Series

Model TNCL-4042 TNCL-5042 TNCL-6042 TNCL-7042 TNCL-8042
Material Wiidth (mm) 50 ~ 400 50 ~ 500 50 ~ 600 50 ~ 700 50 ~ 800
Thickness (mm) 0,5 ~ 4,2
Material Transfer Width/Thickness 4,2 * 100
1,2 * 400		 4,2 * 100
1,2 * 500		 4,2 * 150
1,0 * 600		 4,2 * 150
0,8 * 700		 4,2 * 200
0,8 * 800
Coil Outer Diameter (mm) 1200 이하
Coil Inner Diameter (mm) ⌀508 or less
Weight (kg) 3000 3000 5000 5000 5000
Line Speed (M/min) 22
Feeding Accuracy ±5/100
Work Roll Number Upper 4/Low 4
Servo Motor Capacity (kw) AC 3,5 ~ 7
Power Supply AC 220V 3⌀ 50/60Hz



L*Series


Model TNCL-2060 TNCL-4060 TNCL-5060 TNCL-6060 TNCL-7060 TNCL-8060
Material Wiidth (mm) 50 ~ 200 50 ~ 400 50 ~ 500 50 ~ 600 50 ~ 700 50 ~ 800
Thickness (mm) 0,8 ~ 6,0
Material Transfer Width/Thickness 6,0 * 100
2,0 * 200		 6,0 * 100
2,0 * 400		 6,0 * 100
2,0 * 500		 6,0 * 120
2,0 * 600		 6,0 * 150
2,0 * 700		 6,0 * 150
2,0 * 800
Coil Outer Diameter (mm) ⌀1500
Coil Inner Diameter (mm) ⌀508 or less
Weight (kg) 4000 4000 5000 5000 7000 7000
Line Speed (M/min) 20
Feeding Accuracy ±5/100
Work Roll Number Upper 4/Low 4
Servo Motor Capacity (kw) AC 5,0 ~ 11
Power Supply AC 220V 3⌀ 50/60Hz
