Machinery

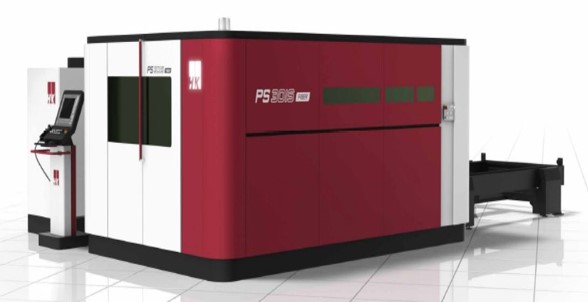

LASER CUTTING MACHINE

FIBER LASER CUTTING SOLUTIONS

          Cost-effective
          Parts of the highest quality
          Ease of operation and clever design

 HDFS 3015

       – Smart Series

HDF III 3015/4020/6020/8020/12020

       – Standard Series with Rack & Pinion Drive Motion
       – Optional SIEMENS Linear Drive Motion (HDFL III)
       – Optional Tube Cutting Device on Side (BH)

HDTC 60170

       – Tube Cutting Series

          Laser Source IPG : 500W/1000W/2000W/3000W/4000W/6000W
          Laser Cutting Head : PRECITEC LightCutter/ProCutter
          Controller : SIEMENS Sinumerik 840D-SL CNC
          CAD/CAM : Lantek METALIX

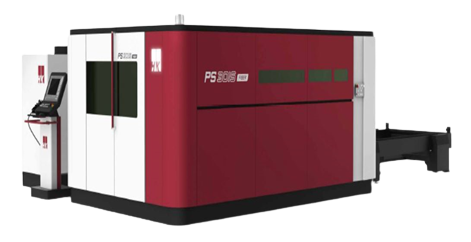

LASER CUTTING ( FIBER )

  • Work Size : 3,048mm x 1,524mm
  • Transfer Speed : 140m/min
  • Cutting Speed : 65,000mm/min
  • Positioning Accuracy : ±0.1mm/3,000mm
  • Repeatability : ±0.03mm
  • Output : 6.0Kw
  • Cutting Capacity : Over than 0.5mm To Steel 15mm, SUS 10mm, AL 8MM, Copper 8mm, Brass 12mm

laser cutting ( co2 )

  • Work Size : 8,250mm x 2,540mm
  • Transfer Speed : 140m/min
  • Cutting Speed : 25,000mm/min
  • Positioning Accuracy : ±0.1mm/3,000mm
  • Repeatability : ±0.03mm
  • Output : 6.0Kw
  • Cutting Capacity : Over than 0.5mm To Steel 20mm, SUS 10mm, AL 8mm

cnc bending



    • Work Size : 3,048mm x 1,524mm
    • Transfer Speed : 140m/min
    • Cutting Speed : 65,000mm/min
    • Positioning Accuracy : ±0.1mm/3,000mm
    • Repeatability : ±0.03mm
    • Output : 6.0Kw
    • Cutting Capacity : Over than 0.5mm To Steel 20mm, SUS 15mm, AL 15MM, Copper 8mm, Brass 12mm

MACHINE FABRICATION

  • We Also Provide Various Kind of Fabrication Base on Customer Needs
  • We Are Ready to Provide For Our Customers with Better Quality Products Also Better Prices with Better Delivery Schedules

CRANES

HOIST ( LGM )

MINI CRANE

GANTRY CRANE

RACK TV

JIG CUTTING

COMPUTER CABINET

TOOL CABINET

RAK TOOL

TROLLEY CART
